Agentic RAG (https://langchain-ai.github.io/langgraph/tutorials/rag/langgraph_agentic_rag/#agentic-rag "Permanent link")

%%capture --no-stderr
%pip install -U --quiet langgraph "langchain[openai]" langchain-community langchain-text-splitters

md-code__content
import getpass
import os

def _set_env(key: str):
    if key not in os.environ:
        os.environ[key] = getpass.getpass(f"{key}:")

_set_env("OPENAI_API_KEY")

md-code__content
from langchain_community.document_loaders import WebBaseLoader

urls = [\
       "https://lilianweng.github.io/posts/2024-11-28-reward-hacking/",\
       "https://lilianweng.github.io/posts/2024-07-07-hallucination/",\
       "https://lilianweng.github.io/posts/2024-04-12-diffusion-video/",\
]

docs = [WebBaseLoader(url).load() for url in urls]

md-code__content
docs[0][0].page_content.strip()[:1000]

md-code__content
from langchain_text_splitters import RecursiveCharacterTextSplitter

docs_list = [item for sublist in docs for item in sublist]

text_splitter = RecursiveCharacterTextSplitter.from_tiktoken_encoder(
       chunk_size=100, chunk_overlap=50
)
doc_splits = text_splitter.split_documents(docs_list)

md-code__content
doc_splits[0].page_content.strip()

md-code__content
from langchain_core.vectorstores import InMemoryVectorStore
from langchain_openai import OpenAIEmbeddings

vectorstore = InMemoryVectorStore.from_documents(
       documents=doc_splits, embedding=OpenAIEmbeddings()
)
retriever = vectorstore.as_retriever()

md-code__content
from langchain.tools.retriever import create_retriever_tool

retriever_tool = create_retriever_tool(
       retriever,
       "retrieve_blog_posts",
       "Search and return information about Lilian Weng blog posts.",
)

md-code__content
retriever_tool.invoke({"query": "types of reward hacking"})

md-code__content
from langgraph.graph import MessagesState
from langchain.chat_models import init_chat_model

response_model = init_chat_model("openai:gpt-4.1", temperature=0)

def generate_query_or_respond(state: MessagesState):
       """Call the model to generate a response based on the current state. Given
       the question, it will decide to retrieve using the retriever tool, or simply respond to the user.
       """
       response = (
           response_model
           .bind_tools([retriever_tool]).invoke(state["messages"])
       )
       return {"messages": [response]}

md-code__content
input = {"messages": [{"role": "user", "content": "hello!"}]}
generate_query_or_respond(input)["messages"][-1].pretty_print()

md-code__content
================================== Ai Message ==================================

Hello! How can I help you today?

md-code__content
input = {
       "messages": [\
           {\
               "role": "user",\
               "content": "What does Lilian Weng say about types of reward hacking?",\
           }\
       ]
}
generate_query_or_respond(input)["messages"][-1].pretty_print()

md-code__content
================================== Ai Message ==================================
Tool Calls:
retrieve_blog_posts (call_tYQxgfIlnQUDMdtAhdbXNwIM)
Call ID: call_tYQxgfIlnQUDMdtAhdbXNwIM
Args:
       query: types of reward hacking

md-code__content
from pydantic import BaseModel, Field
from typing import Literal

GRADE_PROMPT = (
       "You are a grader assessing relevance of a retrieved document to a user question.
 "
       "Here is the retrieved document:

 {context}

"
       "Here is the user question: {question}
"
       "If the document contains keyword(s) or semantic meaning related to the user question, grade it as relevant.
"
       "Give a binary score 'yes' or 'no' score to indicate whether the document is relevant to the question."
)

class GradeDocuments(BaseModel):
       """Grade documents using a binary score for relevance check."""

       binary_score: str = Field(
           description="Relevance score: 'yes' if relevant, or 'no' if not relevant"
       )

grader_model = init_chat_model("openai:gpt-4.1", temperature=0)

def grade_documents(
       state: MessagesState,
) -

> Literal["generate_answer", "rewrite_question"]:
       """Determine whether the retrieved documents are relevant to the question."""
       question = state["messages"][0].content
       context = state["messages"][-1].content

       prompt = GRADE_PROMPT.format(question=question, context=context)
       response = (
           grader_model
           .with_structured_output(GradeDocuments).invoke(
               [{"role": "user", "content": prompt}]
           )
       )
       score = response.binary_score

       if score == "yes":
           return "generate_answer"
       else:
           return "rewrite_question"

md-code__content
from langchain_core.messages import convert_to_messages

input = {
       "messages": convert_to_messages(
           [\
               {\
                   "role": "user",\
                   "content": "What does Lilian Weng say about types of reward hacking?",\
               },\
               {\
                   "role": "assistant",\
                   "content": "",\
                   "tool_calls": [\
                       {\
                           "id": "1",\
                           "name": "retrieve_blog_posts",\
                           "args": {"query": "types of reward hacking"},\
                       }\
                   ],\
               },\
               {"role": "tool", "content": "meow", "tool_call_id": "1"},\
           ]
       )
}
grade_documents(input)

md-code__content
input = {
       "messages": convert_to_messages(
           [\
               {\
                   "role": "user",\
                   "content": "What does Lilian Weng say about types of reward hacking?",\
               },\
               {\
                   "role": "assistant",\
                   "content": "",\
                   "tool_calls": [\
                       {\
                           "id": "1",\
                           "name": "retrieve_blog_posts",\
                           "args": {"query": "types of reward hacking"},\
                       }\
                   ],\
               },\
               {\
                   "role": "tool",\
                   "content": "reward hacking can be categorized into two types: environment or goal misspecification, and reward tampering",\
                   "tool_call_id": "1",\
               },\
           ]
       )
}
grade_documents(input)

md-code__content
REWRITE_PROMPT = (
       "Look at the input and try to reason about the underlying semantic intent / meaning.
"
       "Here is the initial question:"
       "
 -------
"
       "{question}"
       "
 -------
"
       "Formulate an improved question:"
)

def rewrite_question(state: MessagesState):
       """Rewrite the original user question."""
       messages = state["messages"]
       question = messages[0].content
       prompt = REWRITE_PROMPT.format(question=question)
       response = response_model.invoke([{"role": "user", "content": prompt}])
       return {"messages": [{"role": "user", "content": response.content}]}

md-code__content
input = {
       "messages": convert_to_messages(
           [\
               {\
                   "role": "user",\
                   "content": "What does Lilian Weng say about types of reward hacking?",\
               },\
               {\
                   "role": "assistant",\
                   "content": "",\
                   "tool_calls": [\
                       {\
                           "id": "1",\
                           "name": "retrieve_blog_posts",\
                           "args": {"query": "types of reward hacking"},\
                       }\
                   ],\
               },\
               {"role": "tool", "content": "meow", "tool_call_id": "1"},\
           ]
       )
}

response = rewrite_question(input)
print(response["messages"][-1]["content"])

md-code__content
What are the different types of reward hacking described by Lilian Weng, and how does she explain them?

md-code__content
GENERATE_PROMPT = (
       "You are an assistant for question-answering tasks. "
       "Use the following pieces of retrieved context to answer the question. "
       "If you don't know the answer, just say that you don't know. "
       "Use three sentences maximum and keep the answer concise.
"
       "Question: {question}
"
       "Context: {context}"
)

def generate_answer(state: MessagesState):
       """Generate an answer."""
       question = state["messages"][0].content
       context = state["messages"][-1].content
       prompt = GENERATE_PROMPT.format(question=question, context=context)
       response = response_model.invoke([{"role": "user", "content": prompt}])
       return {"messages": [response]}

md-code__content
input = {
       "messages": convert_to_messages(
           [\
               {\
                   "role": "user",\
                   "content": "What does Lilian Weng say about types of reward hacking?",\
               },\
               {\
                   "role": "assistant",\
                   "content": "",\
                   "tool_calls": [\
                       {\
                           "id": "1",\
                           "name": "retrieve_blog_posts",\
                           "args": {"query": "types of reward hacking"},\
                       }\
                   ],\
               },\
               {\
                   "role": "tool",\
                   "content": "reward hacking can be categorized into two types: environment or goal misspecification, and reward tampering",\
                   "tool_call_id": "1",\
               },\
           ]
       )
}

response = generate_answer(input)
response["messages"][-1].pretty_print()

md-code__content
================================== Ai Message ==================================

Lilian Weng categorizes reward hacking into two types: environment or goal misspecification, and reward tampering. She considers reward hacking as a broad concept that includes both of these categories. Reward hacking occurs when an agent exploits flaws or ambiguities in the reward function to achieve high rewards without performing the intended behaviors.

md-code__content
from langgraph.graph import StateGraph, START, END
from langgraph.prebuilt import ToolNode
from langgraph.prebuilt import tools_condition

workflow = StateGraph(MessagesState)

# Define the nodes we will cycle between
workflow.add_node(generate_query_or_respond)
workflow.add_node("retrieve", ToolNode([retriever_tool]))
workflow.add_node(rewrite_question)
workflow.add_node(generate_answer)

workflow.add_edge(START, "generate_query_or_respond")

# Decide whether to retrieve
workflow.add_conditional_edges(
    "generate_query_or_respond",
    # Assess LLM decision (call `retriever_tool` tool or respond to the user)
    tools_condition,
    {
        # Translate the condition outputs to nodes in our graph
        "tools": "retrieve",
        END: END,
    },
)

# Edges taken after the `action` node is called.
workflow.add_conditional_edges(
    "retrieve",
    # Assess agent decision
    grade_documents,
)
workflow.add_edge("generate_answer", END)
workflow.add_edge("rewrite_question", "generate_query_or_respond")

# Compile
graph = workflow.compile()

md-code__content

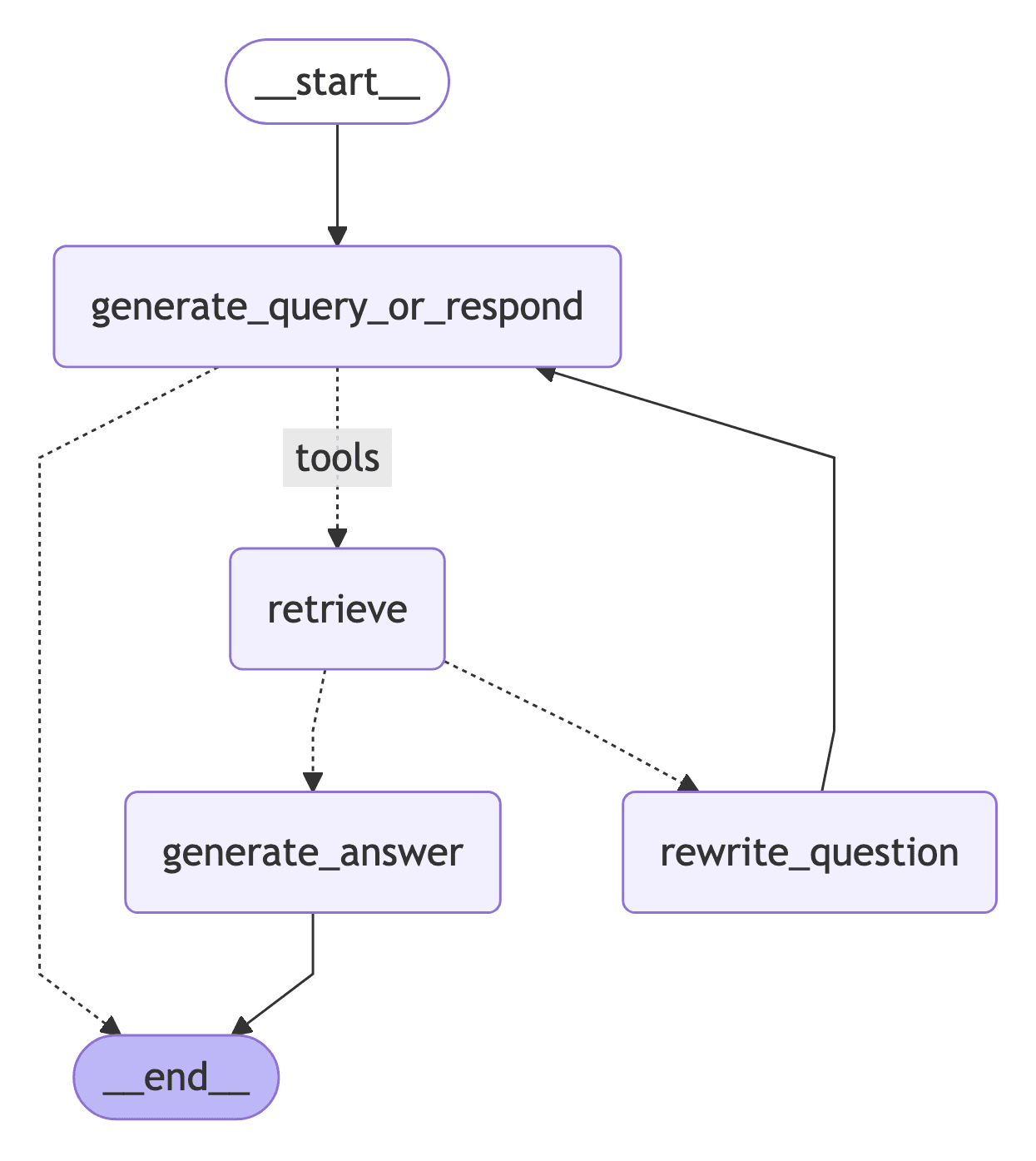

from IPython.display import Image, display

display(Image(graph.get_graph().draw_mermaid_png()))

md-code__content
for chunk in graph.stream(
    {
        "messages": [\
            {\
                "role": "user",\
                "content": "What does Lilian Weng say about types of reward hacking?",\
            }\
        ]
    }
):
    for node, update in chunk.items():
        print("Update from node", node)
        update["messages"][-1].pretty_print()
        print("

")

md-code__content
Update from node generate_query_or_respond
================================== Ai Message ==================================
Tool Calls:
  retrieve_blog_posts (call_NYu2vq4km9nNNEFqJwefWKu1)
 Call ID: call_NYu2vq4km9nNNEFqJwefWKu1
  Args:
    query: types of reward hacking

Update from node retrieve
================================= Tool Message ==================================
Name: retrieve_blog_posts

(Note: Some work defines reward tampering as a distinct category of misalignment behavior from reward hacking. But I consider reward hacking as a broader concept here.)
At a high level, reward hacking can be categorized into two types: environment or goal misspecification, and reward tampering.

Why does Reward Hacking Exist?

#

Pan et al. (2022) investigated reward hacking as a function of agent capabilities, including (1) model size, (2) action space resolution, (3) observation space noise, and (4) training time. They also proposed a taxonomy of three types of misspecified proxy rewards:

Let's Define Reward Hacking

#
Reward shaping in RL is challenging. Reward hacking occurs when an RL agent exploits flaws or ambiguities in the reward function to obtain high rewards without genuinely learning the intended behaviors or completing the task as designed. In recent years, several related concepts have been proposed, all referring to some form of reward hacking:

Update from node generate_answer
================================== Ai Message ==================================

Lilian Weng categorizes reward hacking into two types: environment or goal misspecification, and reward tampering. She considers reward hacking as a broad concept that includes both of these categories. Reward hacking occurs when an agent exploits flaws or ambiguities in the reward function to achieve high rewards without performing the intended behaviors.
