The Complete Google A2A

Azure AI Foundry
Semantic Kernel Blueprint That Makes .NET Multi-Agent Collaboration Effortless

The complete walkthrough for .NET developers who want their AI agents to work together seamlessly, not against each other.

Screenshot showing A2A communication betweeen Travel Planning and Flight booking Agent

Imagine this: You’re building a travel app. A Trip Planner agent figures out where and when you want to go, while a Flight Booking agent handles seat selection, ticket pricing, and booking confirmations.

Now imagine these two agents talking to each other — no human in the loop — to get you from “I want to go to Paris” to “Here’s your boarding pass.”

That’s the magic of agent-to-agent (A2A) communication.

In my last post, we built this exact setup in Python using Google’s A2A and Microsoft’s Semantic Kernel. This time, we’re bringing it into the .NET world with the Semantic Kernel C

SDK.

In this guide, you’ll learn:

The high-level architecture behind multi-agent systems in Semantic Kernel
How to stand up an A2A Server for the Flight Booking Agent
How to build a A2A Client for the Trip Planner Agent
How to orchestrate them in real time — with .NET doing the heavy lifting.

By the end, you’ll have a working, modular multi-agent system you can adapt to finance, healthcare, or any other domain.

[Step-by-Step Guide to Create a Multi-Agent System with Microsoft Semantic Kernel and Google A2A \

Learn How to Connect and Orchestrate Agents Using Semantic Kernel and Google’s A2A Protocol\

TLDR;

Part 1: A2A Agent Server (Flight Booking Agent)

Define Agent — Create agent in Azure AI Foundry
Create Agent Card — Explains the capability definition process
Configure Host Agent — Wraps Azure AI Foundry agent inso A2AHostAgent abstraction provided by Semantic Kernel SDK
Run Server — Shows how to expose the agent via ASP.NET Core

Part 2: A2A Client (Travel Planner Agent)

Create A2A Helper — Agent discovery and communication setup
Initialize A2A Client — HTTP-based communication setup
Register as SK Plugin — Converting A2A agents to Semantic Kernel functions
Integrate with Semantic Kernel — Plugin registration process with kernel.
Orchestrate Agents — SK automatically invokes A2A agents by automatic tool calling (remember in step 3, we converted A2A Invok function into tool)

text


┌─────────────────────┐     A2A Protocol     ┌─────────────────────┐

│  TravelBookingAgent │ ◄──────────────────► │ FlightBookingAgent  │

│     (Client)        │                      │     (Server)        │

│                     │                      │                     │

│ ┌─────────────────┐ │                      │ ┌─────────────────┐ │

│ │   Web UI        │ │                      │ │ Azure AI        │ │

│ │   (HTML/JS)     │ │                      │ │ Foundry Agent   │ │

│ └─────────────────┘ │                      │ └─────────────────┘ │

│ ┌─────────────────┐ │                      │ ┌─────────────────┐ │

│ │ ChatCompletion  │ │                      │ │ A2A Host Agent  │ │

│ │ Agent           │ │                      │ │                 │ │

│ └─────────────────┘ │                      │ └─────────────────┘ │

└─────────────────────┘                      └─────────────────────┘

Software Requirements

.NET 9.0 SDK — (https://dotnet.microsoft.com/download/dotnet/9.0) or later
Visual Studio 2022 or Visual Studio Code
Git for version control
Azure CLI (optional, but recommended)
Azure AI Foundry Project

Part 1: Create A2A Server (Flight Booking Agent)

In this example, I am using Azure Foundry to create my flight booking agent

Step 1: Define the Flight booking Agent in Azure AI Foundry

Navigate to Azure AI Foundry

Create a new project
Navigate to “Agents” section
Create a new agent with:

Name: FlightBookingAgent
Model: GPT-4o
Instructions: “You are a specialized flight booking agent. Help users search for flights, compare prices, and book tickets. Always ask for departure city, destination, travel dates, and passenger count.”

Note down the Assistant ID (e.g., asst_E8h9axBS1S4CX7rZ551SxYT3)

Get Akshay Kokane’s stories in your inbox

Join Medium for free to get updates from this writer.

Note down the Endpoint URL (e.g., https://ai-foundary-akshay.services.ai.azure.com/api/projects/firstProject

Press enter or click to view image in full size

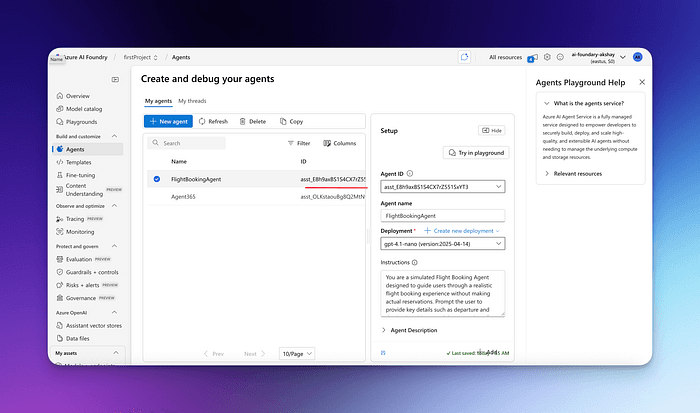

Screenshot of Agent created in Azure AI Foundry

Step 2: Define the Agent Card

Now In your .NET Project, create AgentCardHelper method to create Agent Card for our Flight Booking agent.

text


using SharpA2A.Core;

namespace A2AServer.Agents

public class AgentCardHelper

public static AgentCard GetFlightBookingAgentCard()

return new AgentCard

Name = "FlightBookingAgent",

Description = "Specialized agent for flight booking and search operations",

Version = "1.0.0",

Capabilities = new List<string>

"flight_search",

"price_comparison",

"booking_assistance"

Step 3: Create A2AHostAgent with Azure AI Foundry agent

In python, we Implement the Agent Executor but in Semantic Kernel Agent Executor is abstracted out, and you have to create A2AHostAgent for your agent. In this example we are using Azure AI Foundry Agent, but you can create any type of agent, example ChatCompletionAgent

CreateFoundryHostAgentAsync -\

Helps with defining the connection with Agent Foundry and retrieve the created agent based on assistantId

text


using Azure.AI.Agents.Persistent;

using Azure.Identity;

using Microsoft.SemanticKernel;

using Microsoft.SemanticKernel.Agents.A2A;

using Microsoft.SemanticKernel.Agents.AzureAI;

using SharpA2A.Core;

namespace A2AServer.Agents

public class AgentHelper

internal static async Task<A2AHostAgent> CreateFoundryHostAgentAsync(

string agentType,

string modelId = null,

string endpoint = null,

string assistantId = null,

IEnumerable<KernelPlugin>? plugins = null)

// Create Azure AI client

var agentsClient = new PersistentAgentsClient(endpoint, new AzureCliCredential());

PersistentAgent definition = await agentsClient.Administration.GetAgentAsync(assistantId);

// Create Azure AI Agent

var agent = new AzureAIAgent(definition, agentsClient, plugins);

// Get agent card based on type

AgentCard agentCard = agentType.ToUpperInvariant() switch

"FLIGHTBOOKINGAGENT" =

> AgentCardHelper.GetFlightBookingAgentCard(),

_ =

> throw new ArgumentException($"Unsupported agent type: {agentType}"),

return new A2AHostAgent(agent, agentCard);

Step 4: Define Request handler and initalize the A2A server

In Program.cs, A2AHostAgent is initated with the agent that we created in previous step, and app.MapA2A(hostAgent!.TaskManager!, “”); maps the task manager, which is backbone of event managent in A2A is mapped with the server.

text


using A2AServer.Agents;

using Microsoft.SemanticKernel.Agents.A2A;

using SharpA2A.AspNetCore;

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddHttpClient().AddLogging();

builder.Services.AddOpenApi();

var app = builder.Build();

// Get agent type from command line arguments

var agentType = GetAgentTypeFromArgs(args);

A2AHostAgent? hostAgent = null;

switch (agentType.ToLowerInvariant())

case "flightbookingagent":

hostAgent = await AgentHelper.CreateFoundryHostAgentAsync(

agentType: "FlightBookingAgent",

modelId: "gpt-4o",

endpoint: "YOUR_AZURE_AI_FOUNDRY_ENDPOINT",

assistantId: "YOUR_ASSISTANT_ID",

plugins: null);

break;

default:

Console.WriteLine($"Unknown agent type: {agentType}");

Console.WriteLine("Available agents: FlightBookingAgent");

Environment.Exit(1);

return;

// Map A2A endpoints

app.MapA2A(hostAgent!.TaskManager!, "");

app.UseHttpsRedirection();

app.Run();

Run your application and if everything work correctly, agent is exposed throw A2A.

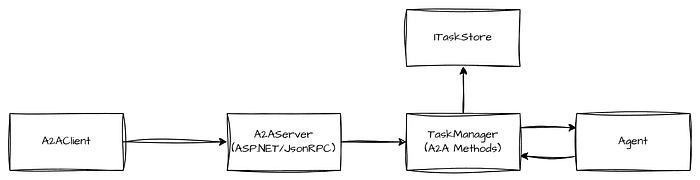

I believe Semantic Kernel abstracts the official A2A .NET library: https://github.com/a2aproject/a2a-dotnet. While it’s not strictly required, I highly recommend reading the README file — it helped me better understand and correlate the Python and .NET implementations.

Press enter or click to view image in full size

refernce: https://github.com/a2aproject/a2a-dotnet

Part 2: Step by Step guide on creating A2A Client for Trip Planning agent

In python implementation, I manually created tool/plugin and wrapped the A2A Client and calls the Flight booking agent, but now with Semantic Kernel factory method creating tool from agent is easy! AgentKernelFunctionFactory.CreateFromAgent(agent)).ToList();

Step 1: Create A2A Helper which will fetch Agents using agent card and covert to KernelFunction

This code defines a utility to dynamically create a Semantic Kernel plugin from a list of remote A2A agents. It fetches agent metadata from provided URLs, constructs KernelFunction using AgentKernelFunctionFactory, and bundles them into a plugin via KernelPluginFactory.

The resulting plugin, named "AgentPlugin", is then added to the provided a2aAgents list. The helper method GetA2AAgent handles HTTP communication to retrieve each agent's card and initialize an A2AAgent instance. This setup allows seamless integration of multiple A2A agents into the Semantic Kernel runtime.

text


public static async Task CreatePluginFromA2AAgent(List<KernelFunction> a2aAgents, string[] agentUrls)

var createAgentTasks = agentUrls.Select(agentUrl =

> GetA2AAgent(agentUrl));

var agents = await Task.WhenAll(createAgentTasks);

var agentFunctions = agents.Select(agent =

> AgentKernelFunctionFactory.CreateFromAgent(agent)).ToList();

var agentPlugin = KernelPluginFactory.CreateFromFunctions("AgentPlugin", agentFunctions);

a2aAgents.AddRange(agentPlugin);

Console.WriteLine($"A2A Plugin created with {a2aAgents.Count} functions");

#pragma warning restore SKEXP0110 // Type is for evaluation purposes only and is subject to change or removal in future updates. Suppress this diagnostic to proceed.

public static async Task<A2AAgent> GetA2AAgent(string agentUri)

var httpClient = new HttpClient

BaseAddress = new Uri(agentUri),

Timeout = TimeSpan.FromSeconds(60)

var client = new A2AClient(httpClient);

var cardResolver = new A2ACardResolver(httpClient);

AgentCard agentCard = await cardResolver.GetAgentCardAsync();

if (agentCard == null)

throw new InvalidOperationException($"No agent card found at {agentUri}");

Console.WriteLine($"A2A Agent '{agentCard}' found at {agentUri}");

return new A2AAgent(client, agentCard!);

Step 2: Register Agents as Tools with Kernel

This step shows how to register A2A agents as plugins in the Semantic Kernel runtime.

First, it initializes an empty list of KernelFunction and calls CreatePluginFromA2AAgent, which populates the list by fetching the agent from a local URL.
Then, it sets up the Semantic Kernel using Azure OpenAI credentials. If any A2A functions were retrieved, they are registered under the plugin name "A2AAgents".
Finally, the kernel is built and ready to use the A2A agent as a callable tool within the Semantic Kernel workflow.

text


List<KernelFunction> a2aAgents = new List<KernelFunction>();

A2AHelper.CreatePluginFromA2AAgent(a2aAgents, new string[] { "http://localhost:5237" }).Wait();

// Create Semantic Kernel with Azure OpenAI

var kernelBuilder = Kernel.CreateBuilder()

.AddAzureOpenAIChatCompletion(deploymentName, endpoint, apiKey);

if (a2aAgents.Any())

// register fetched A2A agent as tool/plugin to Kernel

kernelBuilder.Plugins.AddFromFunctions("A2AAgents", a2aAgents);

var kernel = kernelBuilder.Build();

http://localhost:5237/ is the port where my A2A Server is exposed.

Step 3: Create Travel Agent using Semantic Kernel’s ChatCompletion

text


_travelPlanningAgent = new ChatCompletionAgent()

Instructions = "You are a helpful travel planning assistant. You can help users plan their trips by coordinating with specialized agents for flights, hotels, and other travel services. When users ask about flights, use the available FlightBookingAgent to get flight information.",

Name = "TravelPlanner",

Kernel = kernel,

Arguments = new KernelArguments(new PromptExecutionSettings() { FunctionChoiceBehavior = FunctionChoiceBehavior.Auto() }),

The previously built Semantic Kernel (with A2A plugins registered) is assigned to the agent, enabling it to call external tools. The agent also includes PromptExecutionSettings configured with FunctionChoiceBehavior.Auto(), allowing the system to automatically decide when to invoke available functions like flight booking during conversation.

Step 4: Create method to execute this agent

text


public async Task<string> GetAgentResponseAsync(string userInput, ChatHistory chatHistory)

try

_logger.LogInformation("Processing user input: {UserInput}", userInput);

var response = new StringBuilder();

await foreach (var content in _travelPlanningAgent.InvokeAsync(chatHistory))

response.Append(content.Content);

return response.ToString();

catch (Exception ex)

_logger.LogError(ex, "Error processing agent response");

return "Sorry, I encountered an error while processing your request. Please try again.";

Running the Completed Project

Step 1: Start the FlightBookingAgent Server

text


cd "FlightBookingAgent -A2AServer/A2AServer"

dotnet run -- --agent FlightBookingAgent

Step 2: Start the TravelBookingAgent Client

text


cd "TravelBookingAgent

 - A2AClient/A2AClient"

dotnet run

Step 3: Access the Application

Open your browser to: http://localhost:5223
The travel planning interface will be available

Press enter or click to view image in full size

Demo

Note: I have taken reference from the sample provided in Semantic Kernel — https://github.com/microsoft/semantic-kernel/tree/main/dotnet/samples/Demos/A2AClientServer

Conclusion

By combining Azure OpenAI, Semantic Kernel, and the A2A protocol, we’ve created a powerful and extensible multi-agent system capable of simulating real-world scenarios like travel planning. This blog demonstrated how to integrate external agents (like a FlightBookingAgent) into Semantic Kernel using the A2A standard, wrap them as plugins, and orchestrate them through a central ChatCompletionAgent. This modular approach allows developers to build intelligent, task-oriented agents that can collaborate seamlessly — paving the way for more dynamic, interoperable, and scalable AI-powered applications. Whether you’re building travel bots, enterprise assistants, or custom agent networks, this architecture gives you a flexible foundation to innovate and expand.
